氣動免換模八點壓接機
添加時間：2020/5/20
| DW-W2Q氣動四芯軸壓接工具 | ||||||
| 一、套裝說明 |
|
|
|
|
|
|
| SUT DESCRIPTION |
|
|
|
|
|
|
| 1、此套裝包含的YJQ-W2Q氣動四芯軸壓接工具用于高質量、高標準的壓接要求。 |
|
|||||
| 2、此套裝BM-2底座可自由調整擺放角度，操作便捷易懂，符合人體工程學。 |
|
|||||
| 3、此套裝UH2-5定位器可適用多種端子的壓接定位，軸線方向能自由調節端子的壓接高度。 | ||||||
| 4、此套裝使用氣源氣壓范圍5.5-8.3BAR. |
|
|
|
|||
| 5、關鍵零部件公有制鉻釩鋼，真空熱處理。經久耐用。 |
|
|
||||

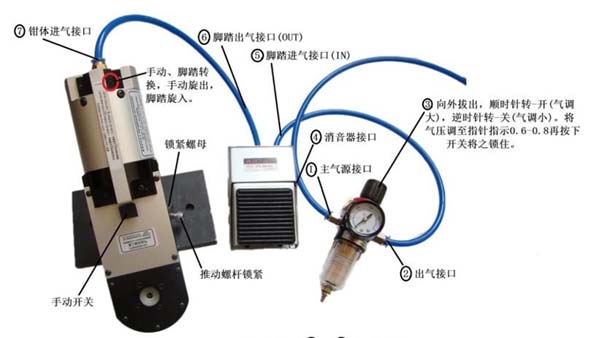

| 6、此套裝包含2種控制模式：①腳閥控制模式；②手動控制模式。 |
|
|
||||
|
|
|
|
|
|
|
|
| 1、This suit contains YJQ-W2Q four-indent cnimp tool used for high quality requirements. | ||||||
| 2、The base support BM-2 could be adjusted frddly ，easy to operat and understand. | ||||||
| 3、The containing Positioner UH2-5 could be compatiable with multiple contacts,easy and free to adjust the terminal position. | ||||||
| 4、The pneumatic control suit is used under Air pressure5.5-8.3BAR. |
|
|||||
| 5、Material containing chorme vanadium steel,processed by vacuum heat treatment. | ||||||
| 6、This kit contains two kinds of control mode:①Foot valve control model;②Hand valve control model. | ||||||
|
|
|
|
|
|
|
|
| 配置清單 CONFIGURATICN LIST | ||||||
| 序號 | 內部編號 | 型號 | 說明 | 數量 | ||
| NO | INTERNAL NUMBER | MCDEL(ARMYLABEL) | DESCRIPTICN | NUMBER | ||
| 1 | F1 | BM-2 | 底座 | 1 | ||
| 2 | P0301 | UH2-5(M22520/1-0.5) | 定位器 | 1 | ||
| 3 | Q3 | YJQ-W2Q(M22520/1-01) | 壓接工具 | 1 | ||
| 4 | F2 | PC-SUITE1 | 氣動組合套裝 | 1 | ||
| 5 | F4 | 9/64Hex Wrench | 內六角扳手 | 1 | ||
| 6 | F5 | 8-32UNCx5/16screw | 螺釘 | 2 | ||
| 具體產品規格參數詳見各產品規格說明書 | ||||||
